Design Freely. Validate Instantly. Deliver Faster.

AI design software helps architects in India reduce layout iteration time by generating optimized, rule-based floor plans from brief inputs in seconds rather than hours, and by enabling instant regeneration of the entire layout when any single requirement changes, without manual redrawing.

In a traditional architectural workflow, iterating a floor plan from one design option to another requires the architect to manually redraw or heavily modify existing geometry in AutoCAD or Revit. A single change in brief, such as the client requesting a larger living area, a shifted service core, or an additional bedroom, triggers a cascade of adjustments that can consume half a working day per revision cycle. When a client requests three or four layout options at concept stage, the architect either delivers fewer options than would be ideal or spends disproportionate time on the exploration phase.

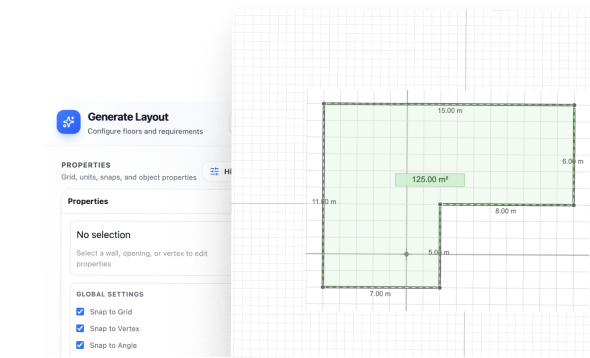

DesignDrafter’s AI Layout Generator for architects eliminates this bottleneck. You define the brief inputs (plot shape, built-up area, number and type of rooms, building type, functional requirements) once, and the AI generates a structured, rule-based floor plan that considers adjacency logic, circulation efficiency, wet area alignment, and space proportions simultaneously. When the brief changes, you update the relevant input and the AI re-evaluates and regenerates the full layout in seconds. There is no redrawing, no manual adjustment of room boundaries, and no risk of introducing errors through piecemeal modifications.

This iteration speed directly enables better design outcomes. Architects using DesignDrafter’s AI Floor Plan Studio can explore significantly more design options in the same time budget that would previously accommodate only one or two manual iterations, delivering clients a more thoroughly considered design from the earliest project stage.

Yes, architects can validate design feasibility, including area efficiency, adjacency logic, MEP integration readiness, and early code compliance, directly within DesignDrafter before any drawing is issued to external consultants, saving significant rework costs and timeline delays.

One of the most common and costly problems in Indian architectural practice is discovering MEP conflicts after the design has been advanced to a stage where changes are expensive. When an architect finalizes a floor plan without knowing whether the MEP systems can physically fit within the spatial envelope provided, the MEP consultant’s first review often returns with requests to shift service shafts, increase ceiling voids, relocate wet areas, or widen corridors for duct routing. Each of these changes triggers architectural revisions that ripple through structural, MEP, and finishes coordination.

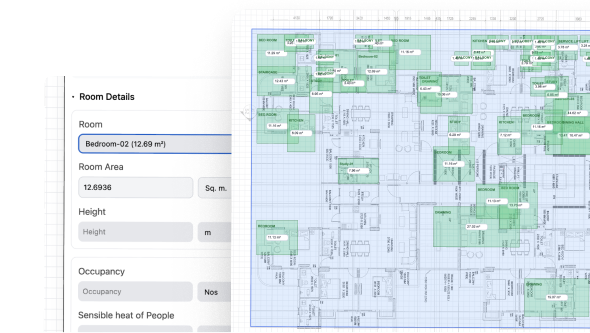

DesignDrafter’s Instant Design Validation solves this problem by checking area efficiency ratios, room adjacency logic, and MEP integration feasibility at the same time the layout is generated, not after the MEP consultant reviews it. The platform checks that wet areas are grouped for plumbing feasibility, that MEP shaft locations are appropriate for the building type, that circulation percentages align with the building typology’s efficiency benchmarks, and that the spatial envelope supports the MEP systems the building type requires.

This early validation is connected to the platform’s MEP calculation engine, meaning architects working within DesignDrafter have access to MEP feasibility data from the first layout iteration rather than discovering coordination issues weeks later. For design firms managing multiple projects simultaneously, this early-validation capability prevents the accumulation of expensive late-stage revisions that compress margins on fixed-fee architectural commissions.

DesignDrafter helps architects maintain compliance with the National Building Code of India (NBC) and other applicable standards by embedding code-aware spatial logic into the AI layout generation process, so outputs are aligned with regulatory requirements from the first iteration rather than being checked for compliance as an afterthought.

For Indian architects, code compliance is a multi-layered obligation. The NBC governs minimum room sizes, corridor widths, staircase dimensions, fire egress requirements, accessibility provisions, and occupancy-specific space standards. State-level development control regulations (DCRs) overlay NBC with local setback rules, FAR/FSI limits, height restrictions, and parking requirements. For commercial buildings, ECBC energy performance requirements apply to envelope, HVAC, and lighting design.

DesignDrafter’s AI layout generation applies NBC-aligned spatial logic when generating floor plans, ensuring that minimum room dimensions, ceiling heights, corridor widths, and circulation ratios are respected in the generated layout rather than requiring the architect to manually check each dimension against the code after design. For MEP systems integrated with the architectural layout, the platform’s MEP calculation modules apply IS/IEC, ECBC, ASHRAE, and NFPA compliance standards relevant to the building type.

For architects who also manage the building permit submission process, the structured, code-referenced calculation reports generated by the platform provide the technical documentation that municipal authorities and approval bodies require. This reduces the back-and-forth correction cycles that extend approval timelines on Indian projects. You can explore how the platform handles compliance across all disciplines for a building project from the DesignDrafter blog covering AI floor plan generators for Indian architects.

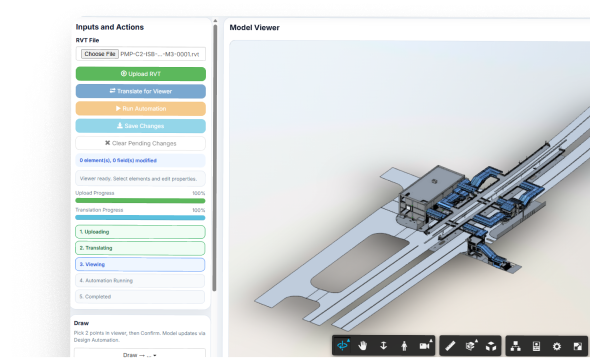

Early MEP coordination means integrating mechanical, electrical, and plumbing system feasibility checks into the architectural design process at the layout stage, before structural elements are fixed and before MEP consultants begin detailed design, so that architectural decisions are made with full awareness of their MEP consequences.

In Indian construction practice, MEP coordination traditionally happens late in the design process, after the architectural drawings have been advanced to a level where changes are time-consuming and expensive. By the time MEP consultants review the architectural layout and identify conflicts, rerouting required, or spatial allocations that do not work for MEP systems, the project may already be at tender stage, creating costly design changes, contractor claims, and site rework.

DesignDrafter provides early MEP coordination for architects by checking that the spatial decisions embedded in the architectural layout are MEP-feasible from the start. This means: wet areas (bathrooms, kitchens, utility areas) are grouped in configurations that minimize plumbing pipe runs and enable efficient drainage routing; MEP shaft locations are identified and spatially allocated in the floor plan before structural elements are positioned; ceiling void depths accommodate duct sizing based on the building’s ventilation and HVAC requirements; and electrical riser positions are coordinated with DB room locations and panel distribution logic.

When the architectural layout is generated on DesignDrafter, these MEP feasibility constraints are considered in the spatial logic the AI applies. The result is an architectural layout that is not just spatially organized and aesthetically considered, but also constructable from an MEP standpoint. For architects working in India on fast-track projects where design and MEP coordination happen in compressed timelines, this integrated approach eliminates the most common source of project delays: the late-discovered MEP clash.

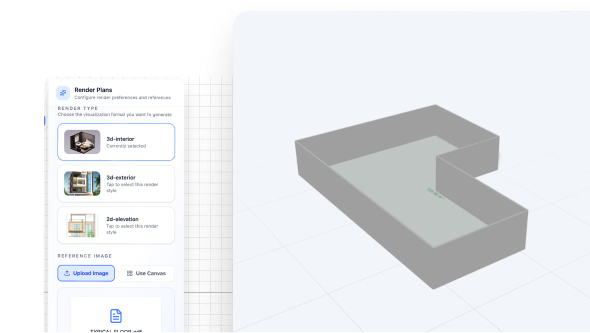

DesignDrafter enables architects to generate 3D interior visualizations and facade renderings directly from the floor plan and design workflow, without exporting to a separate rendering tool or rebuilding the model in a visualization-specific platform.

Traditionally, architectural visualization follows a separate pipeline from design documentation. The architect designs in AutoCAD or Revit, a visualization specialist rebuilds a simplified version of the model in 3ds Max, SketchUp, or Lumion, and after several rounds of modeling and lighting setup, the rendered images are delivered for client presentation. This pipeline adds days or weeks to the concept presentation stage, is expensive when outsourced to specialist visualization firms, and means that rendered images often represent a design snapshot that becomes outdated if the layout changes after rendering begins.

DesignDrafter’s 3D visualization and rendering capability is integrated with the design workflow, meaning rendered views of interior spaces and building facades are generated directly from the same spatial data that drives the floor plan and MEP calculations. When the layout is modified, the visualization updates from the same source rather than requiring a separate remodel. This integration allows architects to present photorealistic interior and facade views to clients at the concept stage without the delay and cost of a separate visualization production process.

For Indian architectural firms where client approval of concept design is gated on presentation quality, the ability to produce immersive visualizations from within the design workflow, at the same time as the technical floor plan and feasibility validation are completed, compresses the concept-to-approval timeline significantly. Clients receive both the technical design rationale and the visual design intent in the same presentation package rather than waiting for visualization deliverables to follow the technical drawings by days or weeks.

DesignDrafter and AutoCAD serve fundamentally different functions in an architect’s workflow. AutoCAD is a drafting tool that requires the architect to manually draw everything from scratch. DesignDrafter is an AI design platform that generates layouts, validates feasibility, coordinates MEP systems, and produces documentation automatically, then allows architects to refine and finalize the AI-generated outputs.

AutoCAD is the industry standard for 2D drafting and remains an essential tool for producing construction documentation. However, AutoCAD does not generate design; it records and drafts design decisions that the architect has already made. An architect using only AutoCAD must manually sketch layouts, manually calculate room areas, manually check adjacency logic, and manually coordinate with MEP consultants through separate software. Every iteration requires significant manual redrawing.

DesignDrafter for architects sits upstream of AutoCAD in the design workflow, handling the intelligence-intensive early stages that AutoCAD cannot automate: generating optimized layout options from a brief, validating feasibility against code and MEP requirements, running early-stage engineering calculations, and producing 3D visualizations. The outputs from DesignDrafter then inform and feed into the AutoCAD documentation workflow, or are converted to BIM models through the CAD to Revit automation, allowing architects to keep their existing documentation tools while adding an AI design intelligence layer upstream.

The key distinction is that AutoCAD executes drawing instructions at high fidelity. DesignDrafter generates the design content that those instructions will later document, compressing the concept and schematic design phases that traditionally consume the most iterative human effort in an architectural project.

Yes, DesignDrafter’s AI layout generation and design validation tools support the full range of building typologies that Indian architects work on, from individual villas and apartment blocks to large-scale commercial offices, hotels, hospitals, and institutional campuses.

The building type selection within the AI Floor Plan Studio determines which spatial logic framework the AI applies. For residential projects, the AI applies residential planning principles: bedroom orientation for privacy and natural light, living area placement for social accessibility, kitchen location relative to service areas, bathroom grouping for plumbing efficiency, and circulation that separates public and private zones of the dwelling. Optional Vastu alignment considerations can be incorporated for Indian residential clients where this is a client requirement.

For commercial projects, the AI shifts to commercial planning logic: efficient floor plate utilization with maximum net-to-gross area ratios, core placement for vertical circulation efficiency, open-plan zones for workstation density optimization, meeting room clusters adjacent to circulation, and MEP service zones positioned for both efficiency and accessibility. For hospitality, retail, healthcare, and institutional typologies, the AI applies the specific spatial requirements and regulatory provisions for each use class.

This flexibility means architects working across practice types use a single platform for their full project portfolio rather than needing specialized tools for different building types. The integration with MEP calculations, BIM automation, and quantity extraction applies consistently across all typologies, so the full project workflow from layout to documentation to BOQ is available regardless of building type.

DesignDrafter helps architects win more clients by dramatically reducing the time and cost of preparing proposal-stage deliverables, enabling firms to present detailed layout options, preliminary cost estimates, and 3D visualizations at the proposal stage that were previously only achievable after a commission was awarded.

In competitive architectural practice, the proposal stage determines which firm wins the commission. Clients increasingly expect to see schematic layout concepts, indicative construction costs, and visual representations of the proposed design as part of the selection process. Preparing these deliverables manually requires the architect to invest significant unpaid time before the commission is confirmed, which limits the number of proposals that can be pursued simultaneously and raises the cost of each unsuccessful bid.

DesignDrafter accelerates proposal production for architects by generating AI-based schematic layouts, preliminary MEP feasibility assessments, indicative BOQs through the quantity extraction module, and 3D visualizations within a single session. A comprehensive proposal package that previously took days to assemble can be produced in hours, allowing architectural firms to respond to more opportunities, present more complete proposal content, and differentiate their practice by demonstrating technical and cost-planning capability at the pre-commission stage.

For design firms managing a high volume of tender opportunities, this proposal-generation speed creates a direct competitive advantage. Firms that can produce more detailed, visually compelling, and cost-aware proposal documents in less time win more commissions at a lower cost-of-sales than competitors who rely on manual proposal preparation.

DesignDrafter supports architectural and structural coordination by generating floor plans that respect structural grid logic, column placement conventions, and slab span requirements for the building type, so that architectural decisions are structurally rational from the outset rather than creating structural engineering problems that emerge during coordination.

For Indian buildings using reinforced concrete frame construction, which is the dominant structural system for residential and commercial buildings in India, column placement directly constrains architectural planning. Columns must be spaced within practical beam span limits (typically 5 to 9 metres for RC frame), must align vertically through all floors, and should be placed to minimize intrusion into functional spaces. When an architect plans room layouts without considering column grid logic, the structural engineer’s column placement often conflicts with the architectural room arrangement, requiring either significant structural compromise or architectural revisions.

DesignDrafter’s AI layout generation considers structural grid rationality as part of the spatial logic it applies, generating room arrangements that align with practical column grids for the building’s span-to-use relationship. This does not replace the structural engineer’s detailed column design, but it ensures that the architectural layout handed to the structural engineer provides a spatially rational starting point rather than an architecturally optimized arrangement that ignores structural economics.

For multi-storey buildings where vertical column continuity is critical, the platform’s floor-by-floor generation maintains consistent structural grid alignment across floors. Combined with the BIM automation module that integrates architectural and MEP elements in a single coordinated model, architects using DesignDrafter deliver a design package to structural and MEP consultants that is internally coordinated before the first consultant review meeting, rather than requiring that meeting to surface all the conflicts.

Yes, DesignDrafter offers a completely free 3-day trial with no credit card required, giving architects hands-on access to the AI layout generation, design validation, and visualization capabilities before any financial commitment.

The free plan on DesignDrafter includes limited access to all platform modules, one demo project, and 50 AI Assistance Credits. This is designed to give architects enough access to generate a floor plan from a real brief, explore layout iterations, test the MEP feasibility validation, and produce a preliminary visualization, all within the free tier. For architects evaluating the platform for their practice, this level of access is sufficient to assess whether the tool fits their project workflow and client presentation requirements.

For individual architects and small practices, the Starter Plan provides 3 active projects per module, AI-powered automation, PDF and Excel report exports, and 1,000 AI Assistance Credits per month. The Generate Layout tier within the Starter Plan covers floor layout generation for 3 buildings with 3D rendering and elevation rendering, starting at 49,999 INR per month.

For larger architectural practices or design firms handling multiple simultaneous projects across multiple typologies, the Professional Plan at 99,999 INR per month includes all modules across floor plan generation, MEP calculations, quantity extraction, and BIM automation, with multi-discipline coordination tools, Project Data Memory, and priority support. The Team Plan is available on custom quotation for firms requiring more than 3 active projects and dedicated support infrastructure. You can start the free trial immediately using your Google account at DesignDrafter.
